Volkswagen Golf Transmission Fault
One day the gearbox is fine. The next, it feels like a completely different car.
That was the reality for Mr G when his 2020 Volkswagen Golf started refusing to select gears properly. Shifts that had always been smooth were now harsh and unpredictable, certain gears were being bypassed altogether, and a transmission fault warning had lit up on the dashboard.
There had been no lead-up to it. No strange noises, no gradual changes in how the car felt, and no work carried out recently that might explain it. Mr G simply didn’t know what had gone wrong, whether the car was safe to continue using, or how much worse things could get.
Mr G contacted Smith’s of London, Croydon, determined to get a clear answer. The way the Golf was behaving pointed to a Volkswagen Golf transmission fault that needed to be diagnosed and resolved.
He needed specialists with the technical skill, diagnostic process, and manufacturer-level resources to find the root cause and carry out the correct repair.
Mr G arranged for the Golf to be assessed at Smith’s of London without delay.
Mr G’s Volkswagen Golf arrived with a transmission warning, rough gear changes and certain gears no longer engaging correctly
How Was the Volkswagen Golf Transmission Fault First Identified?
At Smith’s of London, Croydon, our technicians started by sitting down with Mr G to understand the full picture. We asked when the transmission warning had first shown up, how the gear changes had deteriorated since, and whether anything such as speed, ambient temperature, or journey length seemed to influence the behaviour.
Getting this level of detail from the driver before any equipment is connected gives our technicians a sharper starting point. It means the testing that follows is targeted from the outset, rather than broad and exploratory.
From there, our technicians carried out a road test to confirm the symptoms first-hand. Manufacturer-level diagnostic equipment was connected throughout, capturing serial data from the transmission control module while the vehicle was being driven. Our technicians could see in real time how the transmission was reacting each time the fault occurred.
A full system scan ran alongside the road test and returned a stored fault code directly connected to the Volkswagen Golf transmission fault:
- P1736 00 — Position sensor for clutch 2, electrical malfunction. Active.
The code confirmed that the transmission control module had logged an electrical fault with one of the internal sensors responsible for clutch monitoring. But reaching a reliable conclusion through a transmission warning light diagnosis means going well beyond the code itself. It means understanding what that code tells you about the component that has failed.
To get to the root of what the Volkswagen P1736 fault code was signalling, and to make certain the correct course of action was followed, a more detailed investigation was needed.
Tracing the Evidence Behind the Volkswagen Golf Transmission Fault
The scan had returned fault code P1736, highlighting an electrical malfunction with the position sensor for clutch 2. That was a valuable lead, but not enough to act on alone. Our technicians needed to verify exactly what had failed and why before the right repair for this Volkswagen Golf transmission fault could be confirmed. Each area was worked through in a logical sequence, building toward a conclusion supported by direct evidence.
Step 1: Consulting manufacturer technical data
Our technicians accessed Volkswagen’s technical information service to examine the operating principles of the transmission in Mr G’s Golf.
The 2020 Golf was equipped with a seven-speed Direct Shift Gearbox (DSG), a dual-clutch transmission used extensively across the Golf range. The system uses two independent clutches: clutch 1 is responsible for odd gears (1, 3, 5, 7) and clutch 2 is responsible for even gears (2, 4, 6, and reverse). All gear selection and clutch engagement is managed by a mechatronic unit, an integrated assembly containing the transmission control unit (TCU) and a hydraulic valve body.
One detail that proved significant is that clutch position in this transmission is not read by a separate sensor mounted externally. The mechatronic unit contains integrated pressure sensors that provide the data the system uses to control clutch operation. Clutch position is then derived from those pressure values. When fault code P1736 references “position sensor for clutch 2,” it is identifying this internal pressure sensor within the mechatronic unit.
That finding directed our technicians inward. The fault was almost certainly housed within the mechatronic unit, not at any component fitted on the outside.

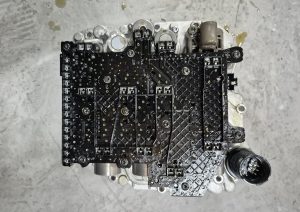

Inspection of the DSG mechatronic unit. Diagnostic testing traced the P1736 fault to the integrated clutch 2 pressure sensor within the unit
Step 2: Checking for technical service bulletins
Our technicians checked for technical service bulletins (TSBs) associated with the diagnostic trouble code (DTC) and the symptoms Mr G had reported.
- A bulletin was located that corresponded to the specific fault code and the behaviour being experienced
- It identified this as a known issue affecting DQ381 transmissions, resulting from gradual deterioration of the integrated pressure sensors inside the mechatronic unit
- The bulletin detailed how, as these sensors degrade or drift beyond their calibrated range, the TCU receives unreliable pressure data and miscalculates clutch position, causing the transmission to select gears incorrectly and shift without predictability
This corroborated what the Volkswagen P1736 fault code had pointed toward, but our technicians still needed to validate the fault through hands-on measurement before any repair decision could be made.
Step 3: Serial data analysis at rest
With the vehicle stationary, the engine off, and the ignition on, our technicians captured the pressure readings for both clutches using manufacturer-level diagnostic equipment.
- A correctly functioning transmission should show both pressure readings sitting as close to 0.00 bar as possible under these conditions
- The clutch 2 value sat well outside the expected range, consistent with a pressure sensor that had shifted beyond its calibrated operating window
- The clutch 1 value was within normal limits, confirming the fault was confined to the clutch 2 circuit
The data matched the Volkswagen P1736 fault code and aligned precisely with what Mr G had been experiencing. The even-numbered gears were the ones being affected, exactly what a clutch 2 sensor failure would produce.
Step 4: Visual inspection
Our technicians inspected the mechatronic unit’s exterior, wiring harness, and all connectors for signs of physical damage, corrosion, or connection issues.
- No external problems were found, confirming the fault was entirely internal to the mechatronic unit
The conclusion
The evidence pointed to one clear answer. The Volkswagen P1736 fault code led directly to the integrated pressure sensor for clutch 2, located on the TCU circuit board within the mechatronic unit. This sensor had fallen out of specification and could no longer deliver accurate hydraulic pressure data for the clutch 2 sub-transmission. The TCU was therefore miscalculating clutch position, which caused incorrect engagement of the even-numbered gears.
Because this sensor is part of the mechatronic assembly, a standalone replacement is not an option. The full mechatronic unit needed to be replaced.
Carrying Out the Mechatronic Unit Replacement
Our technicians took Mr G through the findings in full, explaining both the fault and the repair it required. With his go-ahead confirmed, the work started straight away.

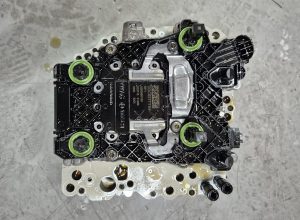

Mechatronic unit replacement
The faulty mechatronic unit was removed and replaced before the transmission was calibrated and adapted using manufacturer-level diagnostic software
- Transmission oil was drained and the mechatronic unit accessed by removing the transmission oil pan and related components
- The faulty mechatronic unit was carefully disconnected and removed from the transmission
- The replacement unit was fitted, with all electrical connections, mounting points, and seals verified to ensure precise installation
- Fresh transmission oil was added to the correct Volkswagen specification in line with manufacturer procedure
Calibration and adaptation
- Manufacturer-level diagnostic software was used to run a calibration and adaptation procedure. This is a critical step following mechatronic replacement, allowing the new TCU to adjust to the specific wear profile of the existing transmission and clutch components
- All stored fault codes were cleared from the system
Post-repair road test
- A structured road test followed, giving the transmission the real driving conditions it needed to complete clutch adaptation
- Our technicians monitored the vehicle throughout, confirming that gear selection was accurate, no gears were being bypassed, and no new fault codes had been generated
A Complete Resolution and a Confident Owner
The Volkswagen gearbox mechatronic repair eliminated the Volkswagen Golf transmission fault entirely. The gearbox was back to selecting every gear with precision, shifting smoothly, and showing no trace of the warning that had first raised the alarm.
Smith’s of London’s structured, evidence-led technical evaluation located the root cause and delivered the correct repair within a single visit. The automatic transmission fault repair was completed to manufacturer standards, with the same technical data and equipment available at a main dealership, at a fraction of the main dealer cost.
Mr G picked up his Golf from Smith’s of London with the gearbox restored and full confidence that the problem was behind him.
